Concrete Retaining Walls in Smithtown, NY

A retaining wall holds back soil where the ground changes level, and the Town of Smithtown regulates it by material, height and distance from the property line. Town Code Section 322-13F allows only pressure-treated timber, mortarless segmental block and cast-in-place concrete, with timber capped at four feet, and Section 322-13B requires a building permit for any wall higher than 30 inches. The bluffs are on the Town's north side, from Fort Salonga and Kings Park east to St. James and Head of the Harbor: State Parks describes the view from the top of the bluffs at Kings Park, and Head of the Harbor's code bars building on any slope of 25% or more. On any lot, what keeps a wall standing is buried behind and under it: drainage stone, a perforated pipe and a footing or leveling pad.

National cost guides put a concrete retaining wall at $15 to $45 per square foot of wall face, with poured concrete at $20 to $45 and block walls at $20 to $35. One survey's worked examples run $1,600 for a wall 2 feet high and 20 feet long, $6,400 for 4 by 40 and $14,400 for 6 by 60. Those are national published ranges, not a quote. Much of the price sits below grade and behind the face: excavation at $130 to $230 per cubic yard, a footing at $18 to $55 per linear foot, a drain at $10 to $30 per linear foot, digging back for geogrid, the polymer mesh that reinforces taller block walls, and access to a steep lot. Engineering, where a wall needs it, is listed at $100 to $220 an hour. The Town permit is a formula tied to wall area, not the $50 to $450 national allowance. To set these against driveways and patios, see what concrete work costs around Smithtown.

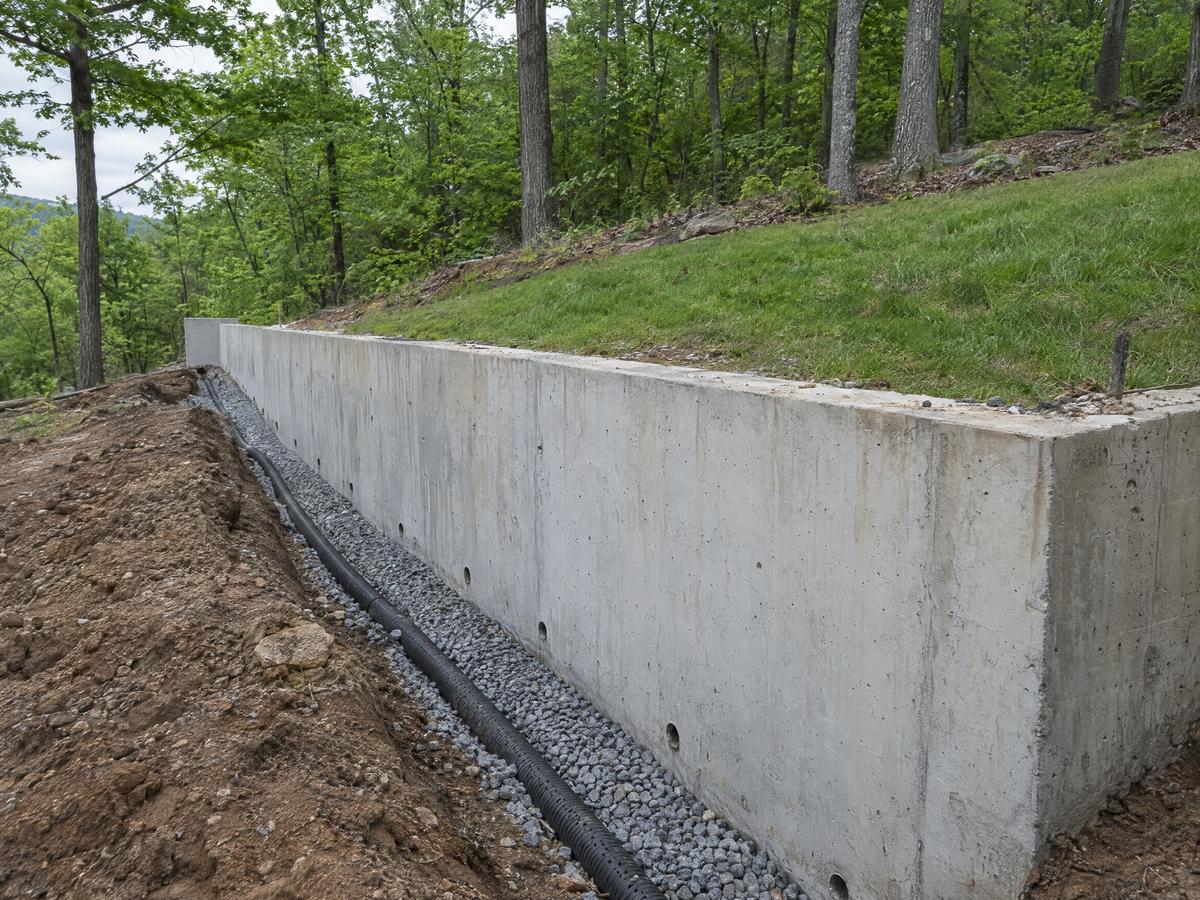

Section 322-13F allows three materials and no others: pressure-treated timber, mechanically stabilized segmental block laid without mortar, and cast-in-place concrete. Timber stops at four feet and cannot be tiered. Mortared block and dry-laid stone are not on the list, so natural stone goes on as veneer over a poured wall rather than as the wall itself. A poured wall starts with a footing on firm, undisturbed soil or compacted fill, below the frost line, and New York leaves frost depth to the local jurisdiction's climate table, Table R301.2(1); footing work is covered on the slabs and footings page. All of New York is in the code's Severe weathering category, one ready-mix association says all exterior concrete should be air-entrained, and a typical published wall detail calls for at least 3,500 psi at 28 days. A segmental wall starts instead on a compacted stone leveling pad.

Settle the paperwork before anyone digs. Section 112-11 sets the Town's retaining wall permit fee at a base of $345 plus $1.45 for every four square feet of wall area. Placement is regulated as closely as height: Section 322-13E keeps a retaining wall back from every property line by its own height or three feet, whichever is greater, and sets any fence or wall on the high side back one foot for every foot of the retaining wall's height. Digging for the wall itself is exempt from the Town's regrading permit under Section 154-15, but reshaping the yard around it on a house lot under two acres, by changing an elevation more than four feet or moving earth within 10 feet of a property line, takes a separate $25 permit from the Town Engineer. The villages run their own building departments, covered below.

Water behind a wall is the load to plan for: the Concrete Masonry and Hardscapes Association (CMHA) says provisions must be made to keep water from accumulating behind the face and to limit frost action. USGS traces the Harbor Hill moraine, the northern of Long Island's two glacial ridges, along the north shore; its 1964 Huntington-Smithtown study puts the summits at 250 to 300 feet and found the water table about 3 feet down at one well and about 87 feet at another. Moraine till is a poorly sorted mix of boulders, gravel, sand, silt and clay, and the deeper layers of the Montauk soil formed in it pass water only at low to moderately high rates; New York Sea Grant notes steep slopes and clay layers that stop water from percolating along the Nissequogue. South of the moraines lies a moderately flat outwash plain of sorted sand and gravel, where Riverhead and Plymouth soils drain fast. Islip averages 98.3 nights a year at or below 32 degrees F, so trapped water freezes.

To price a wall, a crew needs its exposed height and length, what sits on the high side near the top (a driveway, patio, pool, shed or the house) and photos of any lean, bulge or wet spot. Those details tell a crew whether the wall needs geogrid, or an engineer because it tops 4 feet or carries a load. Keep the property survey handy: setbacks are measured from the lot lines, and the villages ask for signed and sealed surveys. From any contractor, ask for a Suffolk County Home Improvement Contractor license number, a certificate of liability insurance and a written scope naming the drainage stone, pipe size and outlet locations. If the wall levels ground for a terrace, plan it with the slab it will hold, covered on the concrete patios and walkways page. Then send the measurements and photos through the quote form.
